产品设计 ->  家居家电 ->  电熨斗 产品类别

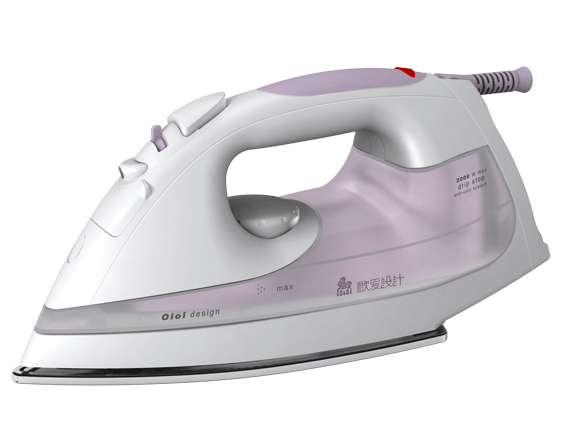

蒸汽熨斗设计效果图

电熨斗设计:更加简洁,现代感,易于使用
蒸汽式电熨斗,设计强调良好的抓握感受以及便捷的使用方式。纯白的机体润滑光亮,磨砂的半透明水箱与机体形成材质对比,大而平的把手洞口便于移动操作。

Irons design : more simple , modern , convenient. Steam-electric irons, the design heavenly stressed the importance of good feelings and be convenient to use. White body is lubricated and glossy, the translucent water body with nubuck and in contrast to the material, the wide and flat handle hole is convenient for moving operators .

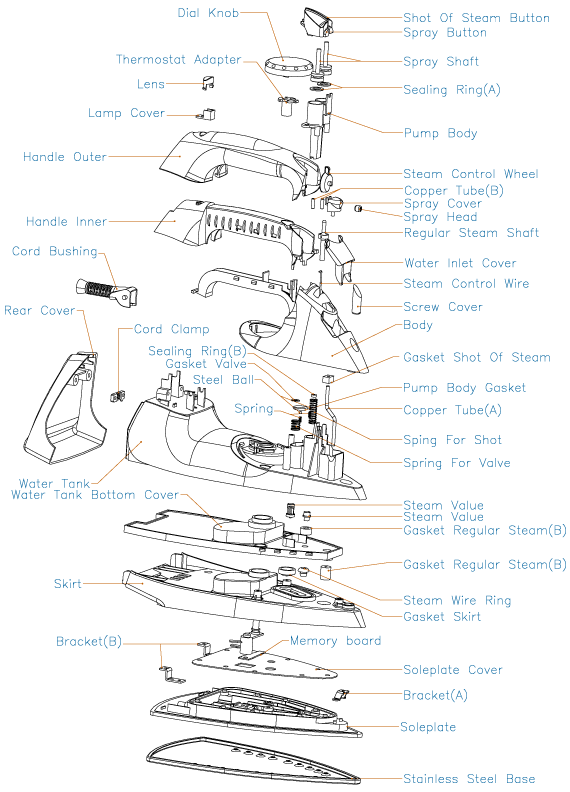

蒸汽熨斗结构设计爆炸图

组装示意
成功的产品设计不仅仅提供给产品使用者以方便,在生产过程中设计便开始发挥它应有的作用。如何通用产品部件,降低产品单个成本;如何降低组装难度,提高组装速度,在结构设计过程中工程师就已经为它细致考虑。

Assembled hint The success of product design not only provide a convenient to the users of the product , in the process of production design was beginning to play its proper role. How to make product components be generic, lower the cost of individual products; How to reduce difficulty in assembly and raising speed in assembly, on the structural design process engineers have to consider it carefully .

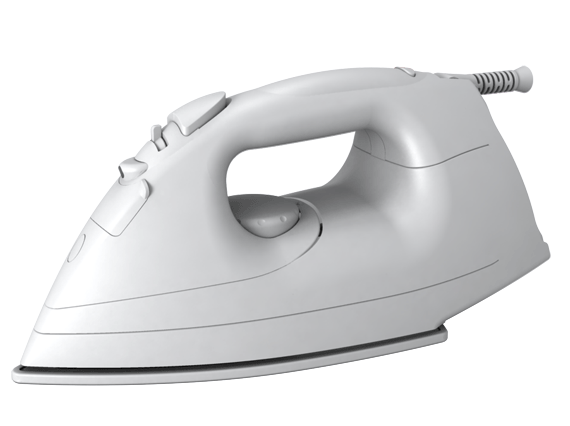

蒸汽熨斗外观设计模型

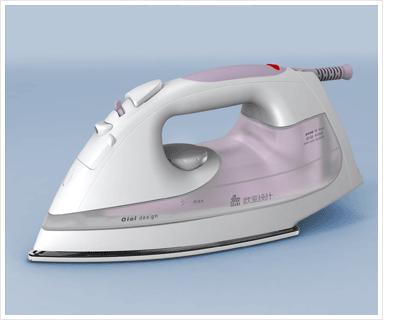

蒸汽熨斗设计效果图 家电

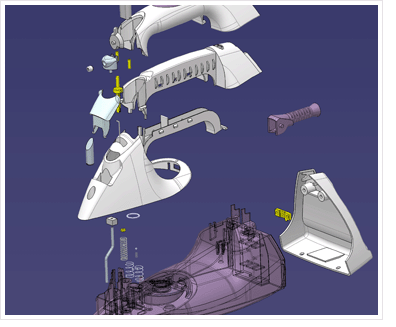

蒸汽熨斗结构拆件设计


合理的拆件保证复杂产品能够有效控制模具成本,结构设计中深入研究各部件使用环境,经过多重测试保证各部件的合理性与可靠性。

Reasonable piecemeal, ensure that complex products are able to control cost of molds effectively, during the structural design , study the use environment of the various components in deep . We need to ensure the reasonableness and reliability by multiple tests of the various components.
