环网柜工业设计

环网柜:现代感,科技感,品质感

环网柜是一组高压开关设备装在钢板金属柜体内的电气设备。其核心部分采用负荷开关和熔断器。环网柜的设计点在于强调产品的专业感和品质感,所以无论是配色还是造型以及图案的设计,都是非常简洁大方、冷峻低调的。

Ring Main Unit: Modern, scientific and technical , a sense of quality Ring Main Unit is a set of electrical equipment whose high voltage switch equipment is installed in sheet metal cabinet. Its core part is load switch and fuse. The design of Ring Main Unit is to put emphasis on the professional feeling and quality feeling of product, so the design of color ,shape and pattern is concise and easy, cold and low-key .

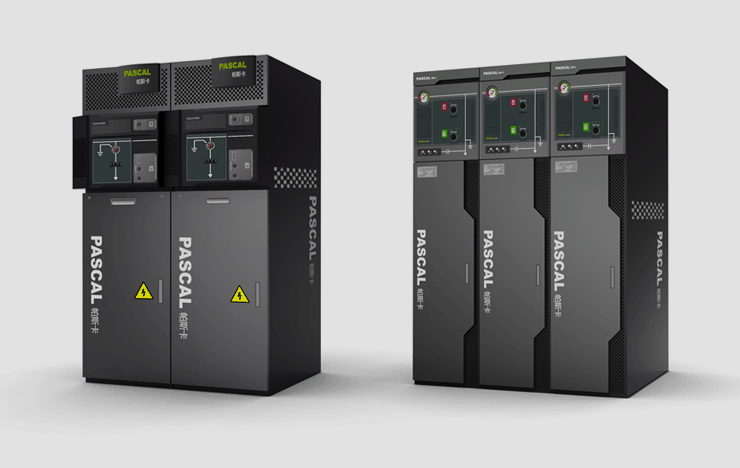

环网柜设计效果图

作为一款控制仪器,其严谨,科学,可信赖的感觉十分重要。设计摒弃了所有浮华的装饰与花哨的造型,强调此类仪器应有的专业感与品质感。经过精心设计的形态,其键面图形有着明确的指示作用。 设备形式紧凑,适合使用,整体有着低调而和谐的色彩搭配。

We need to make it an impression of simplicity, scientific and credible. So in this design we get rid of sall the garish decoration and exaggerated form, but only give it a sense of light quality and professional as it should be. The waterproof buttons, which we design meticulously for it, all have a pattern on each of them, showing its function as a clear guidance for users. The equipment have a compact figure,. And it also fulfils user’s preference in team of color, which is clear, light and harmonious.
