After we fix the
cooperation with the customer, we will had a meeting with the
customer by our market and designer to, understand the
goal which should be realized of the design content and
industrial design. We will obtain the function model of the products
according to the primitive products that the customer offered,
analyses the function of products and the changing range
of structure that we can confirm the limiting conditions of products
and the focal point of design.

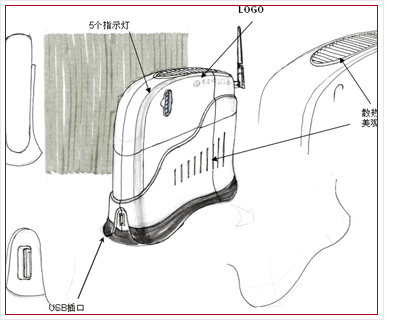

The work at
the sketch stage almost determines 70% cost of the product
design and the result .So this stage is the most
important stage of whole product design. Fast record the
intension and idea through deeply thinking. draw various kinds
of symbols or mark and note the information of designing, draw
the result of designing. This idea of initial
stage of design is often shown as a kind of inspiration flashing
immediately, lacking accurate size and geometry
information. Form the fast records our designer will decide
three or four to design deeply.
Give people more ocular way to
experience the space dimension of the products in terms of a lot
of vision by the model which produced by our designer . Overall
assessment the design product , reduce the
uncertainty point of the design.

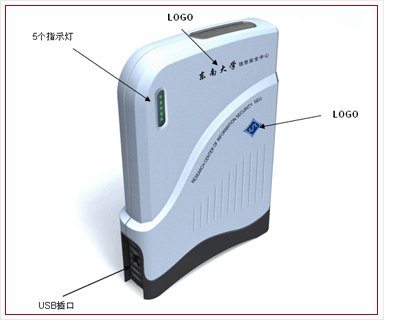

Three-dimensional modeling
describes the form of the products and structure
with the language of 3d promptly. its greatest advantages are the
ocular and authenticity in designing. Adjust the form of the
products in observation of many angles in three-dimensional
space, can put the advanced development course of the original
part away, the more , it also can express the products to
conceive more concretely and improve the design quality of the
products. 3D picture have accurate form proportionate
relationship, and exquisite design details, can ocular to
communicate with customer.

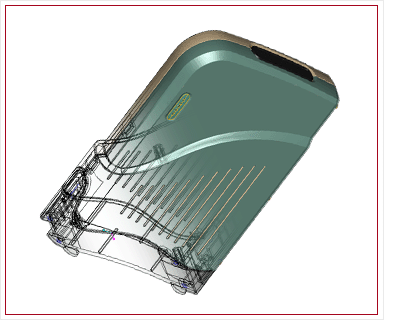

we will design the inside structure of the products, the
installation structure of the products and the relation of
assembling , analyze the rationality of product structure.
According to the size of the designing, we will assemble
the each part of the
accurate completion products with electronic file.
It will confirm the parts of the plan whether it is wanted,
which can be finished through
CAD software. Produce the vector line picture of the accurate
products appearance through this link . Size , roughly material
of expressing the products of dimension sense and mere shadow
relation of showing the products to customer that can already be
clear. It is that a concept is more ocular and more perfect from
sketch.
通过我们Oioi Design的设计成员40天的不懈努力，完成了它的造型及结构设计，目前这两款无线路由器已经顺利投产。

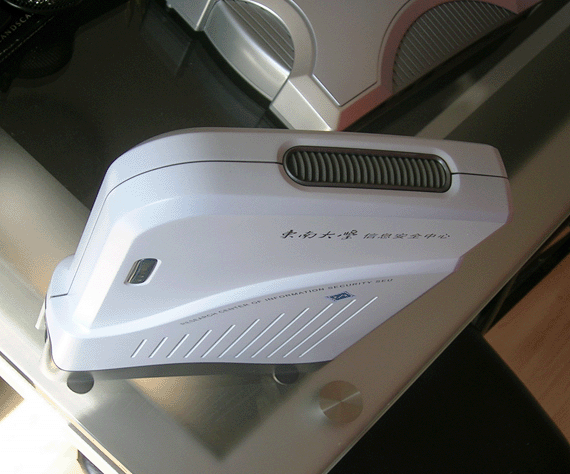

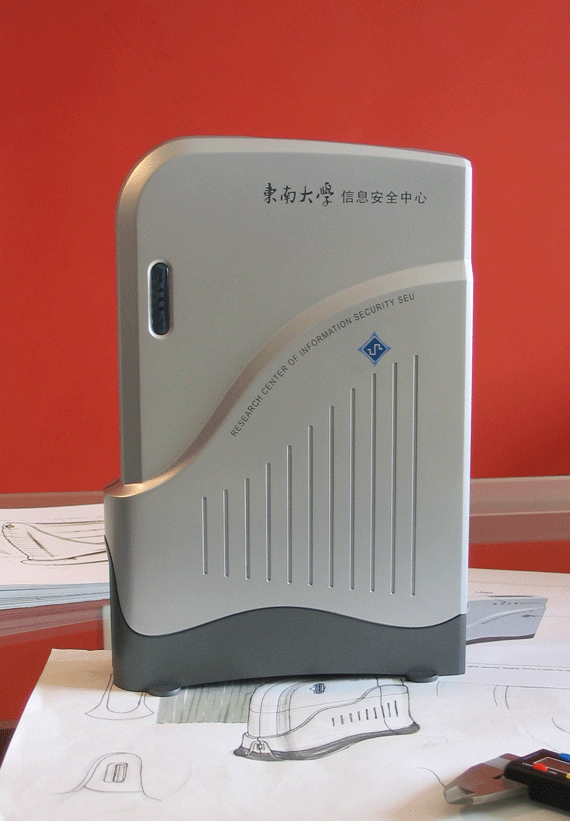

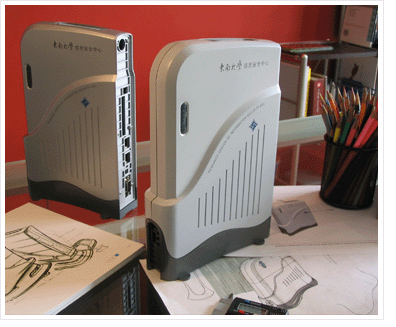

Through our
Oioidesign's professional designing, you can see the perfect
product on the desk which belongs to Research centre of
information sercurity. And now, it is not a model, but is a real
product！
构思草图阶段的工作将决定70%的产品设计成本和效果。所以这一阶段是整个产品设计最为重要的阶段。通过思考形成创意，并加以快速的记录。这一设计初期阶段的想法常表现为一种即时闪现的灵感，缺少精确尺寸信息和几何信息。基于设计人员的构思，通过草图
快速表现，记录下脑中的各种创意和设计信息，确定三至四个方向，再由设计师进行深入研究设计。
手工制作的模型，给人更为直观的方式，从多个视觉角度去感受产品的空间体量。全面的评估产品设计，减少设计的不确定性。
三维建模就是用3d的语言来描述产品形态和结构的过程，它的最大的优点是设计的直观性和真实性，在三维的空间内多角度的观察和调整产品的形态，可以省去原来的部分
样机试制过程，而且能够更加具体得表达产品构思，提高产品设计质量。3D效果图有精确的形态比例关系和精致的细节设计，可以方便地用于与客户的沟通交流
。
我们将设计产品的内部结构和产品的安装结构以及装配关系，评估产品结构的合理性。按照设计尺寸，精确的完成产品的各个零件的电子文件和零件之间的装配关系。
2D效果图会将草图中模糊的设计方案确定化，精确化。这个过程可以通过CAD软件来完成。通过这个环节生成精确的产品外观的平面设计图。2D效果图既可以清晰的向客户展示产品的尺寸和大致的体量感
，也能表达出产品的材质和光影关系。2D效果图是草图更加直观和完善的表达。
通过我们Oioi Design的设计成员40天的不懈努力，完成了它的造型及结构设计，目前这两款无线路由器已经顺利投产。
